GH150 CNC Universal hot stamping machine

所屬類別： > 產品中心 > 應用 > 玻璃瓶 > 化妝品瓶

型號：GH150

在線詢價

Picture for reference

Application:

The GH150 is designed for hot stamping of all shapes of bottles/containers at high production speeds. It is suitable for glass containers stamping after screen printing with varnish. All servo motor driven and fast speed make the GH150 ideal for off-line or in-line 24/7 production.

General Description:

1．Automatic loading system with bottles standing up on conveyor when loading.

2．Auto pre-registration with servo

3．Fast and smooth servo motor driven transmission system.

4．All servo driven system with linear rails and bolts screw. Parts rotation, parts up/down，foil winding all driven by servo motor.

5．Quick and easy change over from one product to another: 2 jigs only, all other parameters will be set in touch screen.

6．PLC control & touch screen operation system.

7．Automatic unloading with servo driven robot, bottles standing up on conveyor after unloading

8．Safety operation with CE standard

Option:

Camera vision system for cylindrical products (without registration notch) stamping.

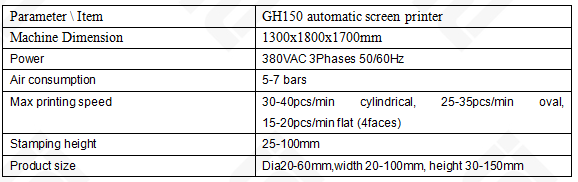

Tech-data:
