Universal XYZ Pad printer

所屬類別： > 產品中心 > 移印機和配件 > 移印機

型號：Universal XYZ Pad printer

在線詢價

Universal XYZ Pad printer

Description:

1.PLC control with touch screen. Ready programmed for 1-4 color printing.

2.Printing head is driven by servo motor (front/rear). Front/rear stroke adjustable up to 325mm.

3.Depth stroke 160mm adjustable with encoder. Special design pad shaft to adjust the pad height.

4.Quick and easy changeover for ink cup from 90mm to 195mm

5.Servo motor driven shuttle with stroke adjustable on the screen, accurate and quick color registration

6.Ink cup is driven by motor with stroke adjustable and selectable.

7.CE safety operation

Accessories and options:

1.Simple plug in 2-4 color shuttle.

2.Auto pad cleaning

3.Motor driven indexing table (rotary table)

4.Motor driven linear conveyor

5.Independent pads up/down

6.Motor driven pads up/down to be all motor driven machine

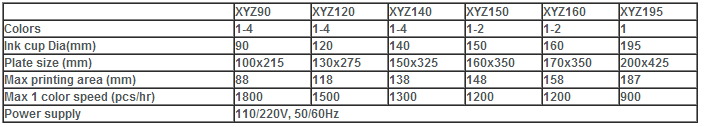

Tech-data:
